Pick to Light Hardware and Software Base Station PTL System SETP_Router_V1.2
- Model
- Pick to light Base Station SETP_Router_V1.2
Item specifics
- Network
- 1
- The antenna
- 2
- Size
- 21*14*4.3cm
- Access
- Web access
- Software Update
- yes
- Communication mode
- 868M, RJ45
Review
Description

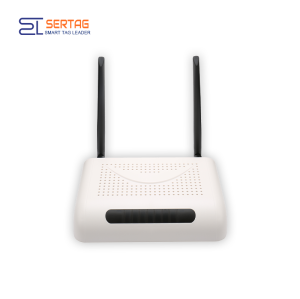

Pick to Light Hardware and Software Base Station PTL System SETP_Router_V1.2 Description
Introducing the indispensable SETP_Router_V1.2, the foundational base station essential for every pick to light system. Designed to synchronize a vast network of over 10,000 pick-to-light devices, this base station revolutionizes warehouse operations. All pick-to-light products hinge upon the SETP_Router_V1.2 as their primary interface. With multi-communication capabilities - harnessing the power of 868M and RJ45 - and operating on the robust Linux platform, it forms the bedrock of a highly efficient and responsive picking system.
This advanced router serves as the central hub, translating instructions from PCs or scanners into precise commands that illuminate LED lights or screens on the pick-to-light devices. Seamlessly guiding pickers to the exact locations of goods, it ensures unparalleled accuracy and speed in the picking process.
Pick to Light Hardware and Software Base Station PTL System SETP_Router_V1.2 Specification
Model | SETP_ Router_V1.2 |
Network | 1 |
The Antenna | 2 |
Communication Mode | 868M, RJ45 |
Power Supply | DC 12V 1A or POE |

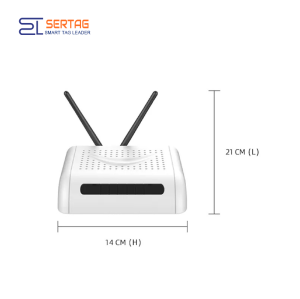

Size |
21*14*4.3cm
|
Operating System |
linux
|
Working Temperature | -10~70℃ |
Wireless Distance | Radius 20~30m |
Number of Labels | >10000 |
Access |
Web Access
|
Service Interface Protocol |
Http, Data format:
Json
|
Pick to Light Hardware and Software Base Station PTL System SETP_Router_V1.2 Workflow
The workflow of SETP_Router_V1.2 is elegantly simple yet profoundly impactful. Triggered by instructions from a PC or scanner, the base station SETP_Router_V1.2 serves as the conduit, transmitting these directives to individual pick-to-light modules. These modules then illuminate, guiding pickers efficiently to the exact location of the intended goods. This orchestrated synchronization between the central control, base station, and pick-to-light devices ensures unparalleled accuracy and swiftness in the picking process, revolutionizing warehouse operations.
