Model
Pick to light Base Station SETP_Router_V1.4

Item specifics

Network
1
The antenna
2
Size
21*14*4.3cm
Access
Web access
Software Update
yes
Communication mode
868M, RJ45

Review

Description

Put to Light Systems Self-contained Server Base Station SETP_Router_V1.4 Description
Introducing SETP_Router_V1.4, as the base station for all pick-to-light models, this iteration stands out with its self-sufficiency. Unlike its counterpart, the SETP_Router_V1.2, it doesn't require an external server; instead, it comes equipped with a built-in server program. This innovative design streamlines user interactions, requiring only direct instruction input for data transfer, ensuring unparalleled ease of use.

This base station boasts a wireless communication range spanning 20-30m, supporting the operational needs of over 10,000 pick-to-light products. Its self-contained server program simplifies the user experience, minimizing setup complexities and maximizing operational efficiency.
Put to Light Systems Self-contained Server Base Station SETP_Router_V1.4 Specification
pick to light base station
pick to light base station
Model
SETP_ Router_V1.4
Network
1
The Antenna
2
Communication Mode
868M, RJ45
Power Supply
DC 12V 1A or POE
Size
21*14*4.3cm
Operating System
linux
Working Temperature
-10~70℃
Wireless Distance
Radius 20-30m
Number of Pick to Light Labels
>10000
Software Update
Yes
Access
Web access
Server

Built in:

webserver: Tomcat

Server system: JAVA

Database: Mysql

Router
Service Interface Protocol
Http, Data format：Json

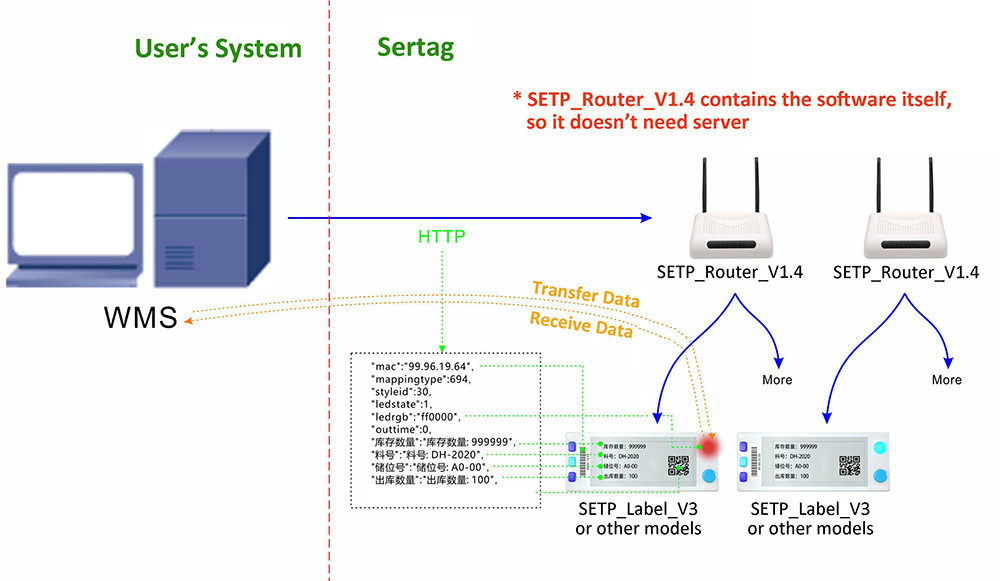

Pick to light Base Station SETP_Router_V1.4 Workflow
The workflow of SETP_Router_V1.4 is a testament to its user-friendly design. Users simply need to send operational instructions directly to this base station, facilitating seamless data transfer. This unique feature eliminates the need for external servers, reducing setup hassles and streamlining the process for swift and efficient operations.
digital picking system
Put to Light Systems Self-contained Server Base Station SETP_Router_V1.4 Download
SETP_Router_V1.4 Operate Steps
