10.2 inch Warehouse E-ink Electronic Tag Low Power Pick to Light and Put to Light System Industrial IP66 Electronic Label
10.2 inch Warehouse E-ink Electronic Tag Low Power Pick to Light and Put to Light System Industrial IP66 Electronic Label
10.2 inch Warehouse E-ink Electronic Tag Low Power Pick to Light and Put to Light System Industrial IP66 Electronic Label
Model
SETP_Label_V102

Item specifics

Dimensions (mm)
234.9*175.4*14.4mm
Screen Size
10.2 inch
Display Technology
E-ink display
Button
3 Buttons
Operating Frequency
868MHz
Communication Mode
Wireless

Review

Description

10.2 inch Warehouse E-ink Electronic Tag Low Power Pick to Light and Put to Light System Industrial IP66 Electronic Label

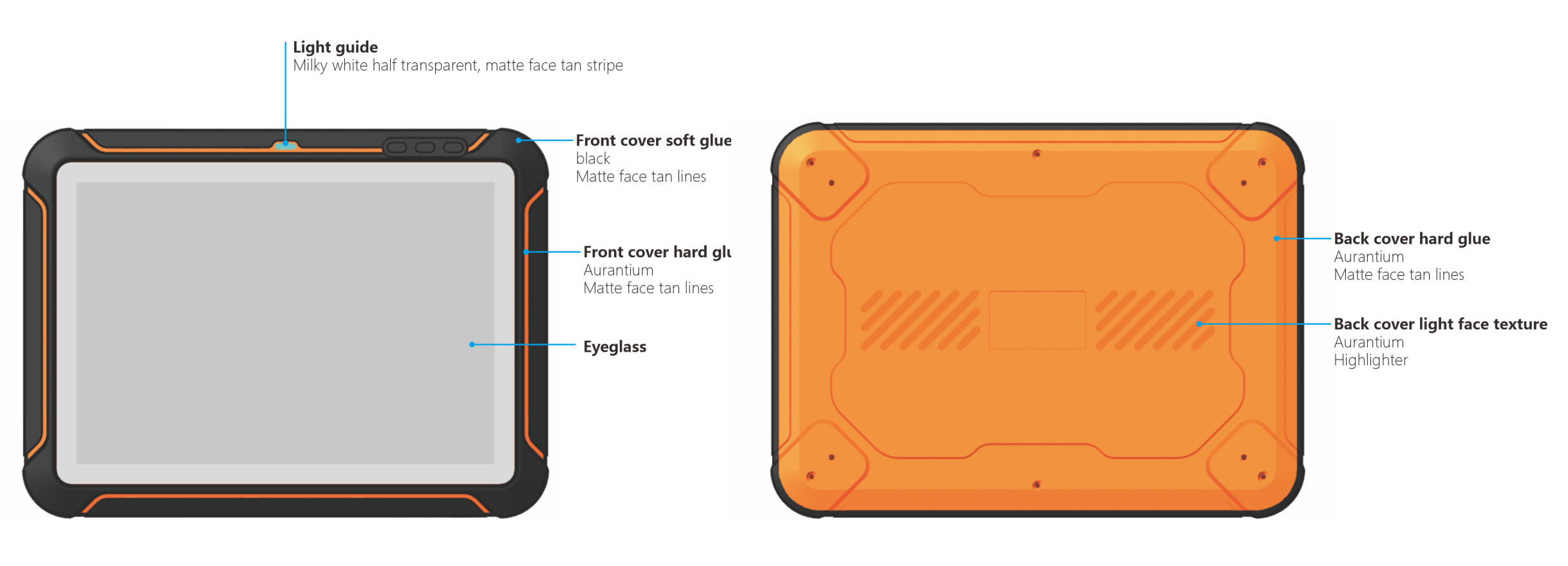

SETP_Label_V102 is a 10.2-inch electronic paper tablet specifically designed for warehouse picking and factory workflow displays. This device offers a robust IP66 waterproof rating, making it ideal for various industrial environments where durability and reliability are essential.

The SETP_Label_V102 operates on an energy-efficient electronic paper display that not only conserves power but also eliminates the need for traditional paper, resulting in significant cost savings for businesses. With its seamless connection to the SETP_Router_V1.4 base station, users can effortlessly update display information with just a single click, streamlining operational processes.

The SETP_Label_V102 is the perfect solution for modern logistics and manufacturing, designed to enhance operational efficiency and deliver reliable performance in challenging environments.

big electronic warehouse label
Model
SETP_Label_V102
Dimensions (mm)
234.9*175.4*14.4mm
Screen Size
10.2 inch
Display Technology
E-ink display
Active Display Area (mm)
215.5(H) * 143.68(V)
Resolution
960*640
Pixel Density
0.225*0.225
Pixel Colors
Black/White
Case Color
Black
Button
3 Buttons
Indicator Light
1 RGB Lights
Communication Mode
Wireless
Viewing Angle
Nearly 180°
Working Temperature
0 - 50℃
Displayable Content
Text/Picture/Barcode/QRcode
Operating Frequency
868MHz
LED Color
7Colors(Red/Green/Blue/Yellow/purple/white/cyan)
Communication Equipment
SETP_Router_V1.4 & SETP_Router_V1.2
Wireless Firmware Update
Yes
Template Design DIY
Yes
Purchasing Guide for the Base Stations of Pick-to-Light SETP_Label_V102
e-ink industrial electronic labels system
Recommend!
Features: Equipped with a built-in server program for effortless data transmission.
Ease of Use: Users simply send operational instructions directly to this base station for efficient data transfer, ensuring user-friendly functionality.
Functionality: Facilitates instruction transmission via PC or scanner.
Operation: Functions by relaying instructions from the PC or scanner through the SETP_Router_V1.2 base station to control LED lights/screens on the pick-to-light system.
warehouse e-ink electronic tag system
10.2 inch Warehouse E-ink Electronic Tag Advantage
● Paperless Efficiency
Utilizing advanced electronic paper technology, the SETP_Label_V102 eliminates paper waste, reducing material costs and supporting eco-friendly practices.

● One-Click Updates
Instantly modify all incoming material information with a user-friendly interface, significantly cutting down on labor costs and time spent on updates.

● Streamlined Workflows
This tablet optimizes critical tasks such as information updates, display changes, and picking processes, leading to increased productivity and efficiency in operations.

● Customizable LED Indicators
Equipped with multi-color LED lights, the SETP_Label_V102 allows for easy identification of different goods by programming specific colors for various items, enhancing operational clarity.

● Lower Error Rates
By providing accurate information displays, the device helps minimize human errors and ensures higher accuracy in picking and workflow management.
