Pick-to-Light System: Battery Powered E-ink Pick to Light label & Base Station Warehouse Operations
- Model
- Pick-to-Light System with SETP_Label_V3(Battery Powered)
Item specifics
- Display Technology
- Full Graphic E ink Display
- Server
- Built in
- Software Update
- Yes
- Operating Frequency
- 868MHz
- Communication Mode
- Wireless
- Application
- Factory, Warehouse, E-commerce, Logistics...
Review
Description
Pick-to-Light System: Battery Powered E-ink Pick to Light label & Base Station Warehouse Operations
Revolutionize your warehouse operations with the Sertag Pick-to-Light System, a solution uniting the advanced capabilities of the SETP_Router_V1.4 base station and the versatile SETP_Label_V3 (Battery Powered) units. Designed to optimize picking processes, this integrated system offers unparalleled efficiency and control. Rapid communication between the base station and label units streamlines operations, minimizing picking errors and maximizing productivity. Intuitive buttons and clear indicator lights enhance user experience, reducing training time and improving operational fluency.
For businesses seeking tailored installation methods or specific customization options, our support team is readily available to assist and ensure the seamless integration of the Sertag Pick-to-Light System into your warehouse environment.
|
Model
|
SETP_Label_V3(Battery Powered)
|
Display Technology
|
Full Graphic E ink Display
|
Dimension | 114.5x44.5x19mm | Pixel Color | Black & White |
Screen Size | 2.9 inch | Case Color | White |
Resolution | 296*128 | Button | 4 Buttons |
Working Temperature | 0~50℃ | Indicator Light | 1 RGB Lights |
Operating Frequency | 868MHz | Communication Mode | Wireless |
|
Viewing Angle
|
Nearly 180°
|
Wireless Firmware Update
|
Yes
|
|
Displayable Content
|
Text/Picture/Barcode/QRcode
|
Template design DIY
|
Yes
|
|
Battery
|
Button battery pack 1800mAh(CR2450*3)
|
Battery Lifetime
|
>1 year (10 times per day)
|
|
Model
|
SETP_ Router_V1.4
|
Network
|
1
|
|
The Antenna
|
2
|
Communication Mode
|
868M, RJ45
|
|
Power Supply
|
DC 12V 1A or POE
|
Size
|
21*14*4.3cm
|
Operating System | linux | Working Temperature | -10~70℃ |
Wireless Distance | Radius 20-30m | Software Update | Yes |
Number of Pick to Light Labels | >10000 | Server | Built in:
webserver: Tomcat
Server system: JAVA
Database: Mysql
Router |
|
Access
|
Web access
|
Service Interface Protocol
|
Http, Data format：Json
|

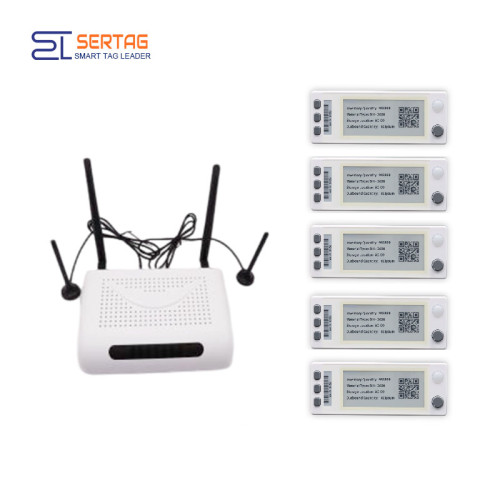

Pick-to-Light System with SETP_Label_V3(Battery Powered) Including
① Pick to light system built-in server Base Station SETP_Router_V1.4
② 5 SETP_Label_V3 (Battery Powered)
Pick-to-Light System Demo Kit Working Principle
The SETP_Router_V1.4 serves as the central hub, hosting a built-in server program for seamless data transmission. Users send operational commands to the base station, which relays instructions to the SETP_Label_V3 units. These battery-powered units feature a 2.9-inch electronic paper display, capable of showcasing text, images, QR codes, and more. With 4 buttons and an indicator light, they promptly respond to received commands by illuminating or updating displayed content.
Pick-to-Light System with SETP_Label_V3(Battery Powered) Download
Pick-to-Light System Demo Kit Advantage
Advanced Functionality
The SETP_Router_V1.4 serves as the nerve center, hosting a robust, built-in server program. This empowers users to seamlessly transmit operational commands directly to the base station, streamlining the entire data flow process within your warehouse environment.
Enhanced Display and Interaction
The SETP_Label_V3(Battery Powered) units, powered by long-lasting batteries, boast a 2.9-inch electronic paper display with minimal power consumption. This cutting-edge display technology supports the dynamic presentation of text, images, QR codes, and other crucial information, ensuring clear and precise communication throughout the picking process. With four easily accessible buttons and a visible indicator light, these units offer a user-friendly interface, simplifying interaction and control for your workforce.
Streamlined Operations
Through a seamless interaction between the base station and label units, the Sertag Pick-to-Light System optimizes warehouse operations. Upon receiving commands from the base station, the SETP_Label_V3(Battery Powered) units promptly respond by illuminating or updating displayed content, facilitating efficient and accurate picking processes.
Pick-to-Light System Demo Kit Application
