Put by Light System Demo Kit, PTL System Router, No Screen Pick to Light Wireless Digital Label
Put by Light System Demo Kit, PTL System Router, No Screen Pick to Light Wireless Digital Label
Put by Light System Demo Kit, PTL System Router, No Screen Pick to Light Wireless Digital Label
Put by Light System Demo Kit, PTL System Router, No Screen Pick to Light Wireless Digital Label
Put by Light System Demo Kit, PTL System Router, No Screen Pick to Light Wireless Digital Label
Put by Light System Demo Kit, PTL System Router, No Screen Pick to Light Wireless Digital Label
Model
Put by Light Demo Kit with SETP_Label_V11(Battery Powered)

Item specifics

Screen
No Screen
Server
Built in
Software Update
Yes
Working Temperature
0~50℃
Indicator Light
1 RGB Light
Battery
Button battery pack 2200mAh(CR2477*2)
Application
Factory, Warehouse, E-commerce, Logistics...

Review

Description

Put by Light System Demo Kit, PTL System Router, No Screen Pick to Light Wireless Digital Label
SETP_Label_V11 offers two variants, one with and one without a confirmation button, tailored to meet varying operational needs. Embracing a battery-powered design, this solution incorporates a plug-in button battery pack, ensuring not only ease of replacement but also a robust connection for sustained performance. The thoughtfully designed front battery compartment cover streamlines maintenance, simplifying battery replacements for uninterrupted operations.

SETP_Router_V1.4 serves as the central hub in our Pick by Light series. Equipped with a built-in server program, this base station streamlines data transfer. Users can effortlessly input commands for seamless communication during operations.
pick to light
Pick-to-light system
Model
SETP_Label_V11
Button
1
Dimension
95.8x39.8x12.8mm
Indicator Light
1 RGB Light
Case Color
White
Power Supply
Batteries
Battery
Button battery pack 2200mAh(CR2477*2)
Communication Mode
Wireless
Working Temperature
0~50℃
Operating Frequency
868MHz
Wireless Firmware Update
Yes
Battery Lifetime
>1.5 years(10 times per day)
Model
SETP_ Router_V1.4
Network
1
The Antenna
2
Communication Mode
868M, RJ45
Power Supply
DC 12V 1A or POE
Size
21*14*4.3cm
Operating System
linux
Working Temperature
-10~70℃
Wireless Distance
Radius 20-30m
Software Update
Yes
Number of Pick to Light Labels
>10000
Server
Built in:
webserver: Tomcat
Server system: JAVA
Database: Mysql
Router
Access
Web access
Service Interface Protocol
Http, Data format:Json

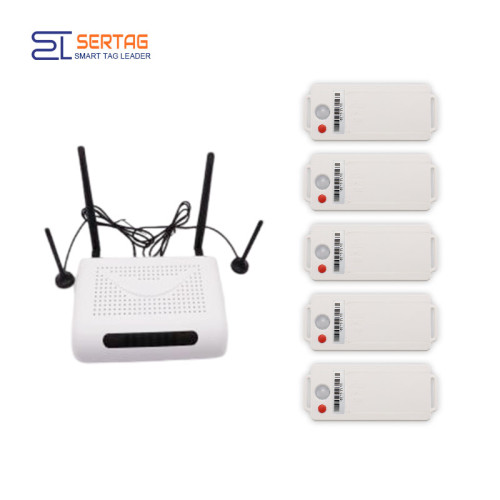

Put by Light Demo Kit with SETP_Label_V11(Battery Powered) Including
① Pick to light system built-in server Base Station SETP_Router_V1.4
② 5 SETP_Label_V11 (Battery Powered)
Put by Light System Demo Kit Working Principle
The SETP_Router_V1.4 serves as the central hub, hosting a built-in server program for seamless data transmission. Users send operational commands to the base station, which relays instructions to the SETP_Label_V11 units.
pick to light system
Put by Light Demo Kit with SETP_Label_V11(Battery Powered) Download
Pick To Light System-SETP_Label_V11
SETP_Label_V11 System Developer's Manual
Pick to Light Operation Manual
SETP_Router_V1.4 Operate Steps
Put by Light System Demo Kit Advantage
Mobility and Portability
Compact design allows for easy movement and swift installation in dynamic warehouse environments.

Battery-Powered Efficiency:
Utilizes a plug-in button battery pack for a robust and easily replaceable power source.

Built-in Server Program
Equipped with a built-in server program, the router eliminates the need for external servers, simplifying the setup and reducing dependency on additional hardware.

Efficient Data Transfer
The router facilitates efficient and reliable data transfer between devices, ensuring real-time communication and enhancing overall operational efficiency.
Put by Light System Demo Kit Application
pick to light application
put to light application
pick to light warehouse
