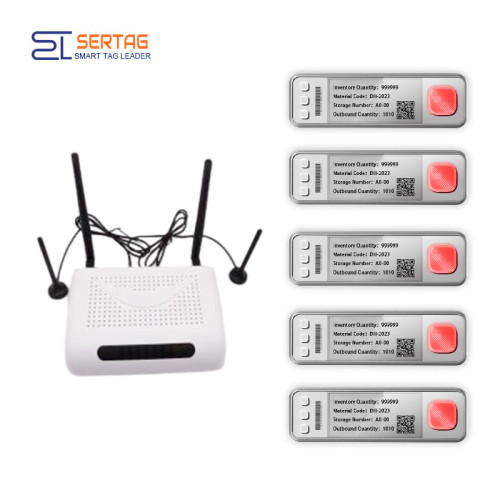

Warehouse Picking System 2.9 inch Wireless Epaper Electronic Tag with Built-ink Server Program Demo
- Model
- Pick to Light AP and SETP_Label_V23(Battery Powered)
Item specifics
- Screen
- 2.9 inch E-paper Display
- Server
- Built in
- Software Update
- Yes
- Working Temperature
- 0~50℃
- Indicator Light
- 4 RGB Lights
- Battery
- AA Battery*4
- Application
- Factory, Warehouse, E-commerce, Logistics...
Review
Description
Warehouse Picking System 2.9 inch Wireless Epaper Display Electronic Tag with Built-ink Server Program AP Demo Kit
This innovative solution employs a 2.9-inch electronic paper screen, complemented by three small buttons and a prominent LED-enabled large button, ensuring swift and accurate operations in pick-to-light warehouses. Powered by long-lasting batteries, exceeding a remarkable 3-year lifespan, SETP_Label_V23 promises unparalleled reliability and efficiency.
SETP_Router_V1.4 serves as the central hub in our Pick by Light series. Equipped with a built-in server program, this base station streamlines data transfer. Users can effortlessly input commands for seamless communication during operations.
|
Model
|
SETP_Label_V23(Battery Powered)
|
Working Temperature
|
0~50℃
|
Power Supply | Battery (AA Battery*4) | Operating Frequency | 868MHz |
Dimension | 156x48x20mm | Viewing Angle | Nearly 180° |
Screen Size | 2.9 inch | Displayable content | Text/Picture/Barcode/QRcode |
Resolution | 296*128 | Battery Lifetime | >3year (10 times per day) |
|
Display Technology
|
Full Graphic E ink Display
|
Communication Mode
|
Wireless
|
Pixel Color | Black & White | Extended Interface | 1 input pin |
Case Color | White & silver gray | Compliance | CE, RoHS |
Button | 4 Buttons | Wireless Firmware Update | Yes |
|
Indicator Light
|
4 RGB Lights
|
Template design DIY
|
Yes
|
|
Model
|
SETP_ Router_V1.4
|
Network
|
1
|
|
The Antenna
|
2
|
Communication Mode
|
868M, RJ45
|
|
Power Supply
|
DC 12V 1A or POE
|
Size
|
21*14*4.3cm
|
Operating System | linux | Working Temperature | -10~70℃ |
Wireless Distance | Radius 20-30m | Software Update | Yes |
Number of Pick to Light Labels | >10000 | Server | Built in:
webserver: Tomcat
Server system: JAVA
Database: Mysql
Router |
|
Access
|
Web access
|
Service Interface Protocol
|
Http, Data format：Json
|

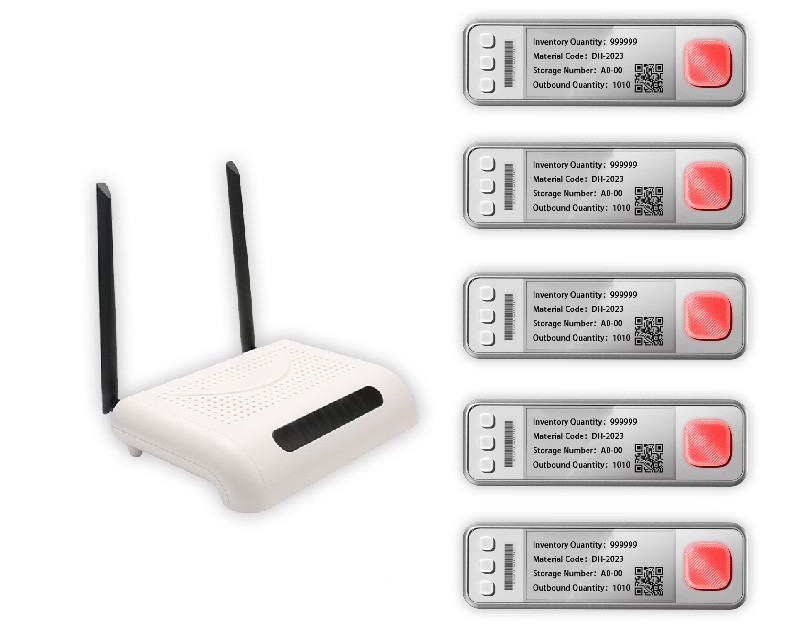

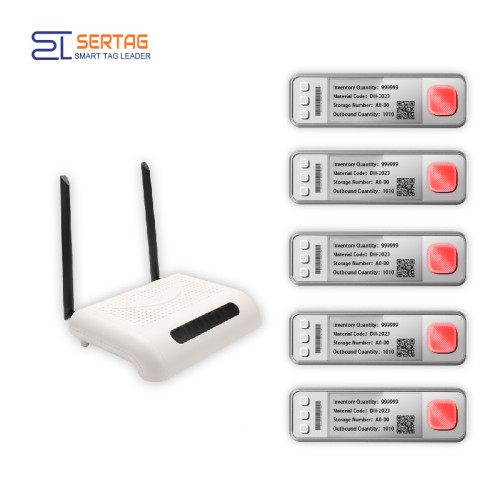

Warehouse Picking System Demo Kit with SETP_Label_V23(Battery Powered) Including
① Pick to light system built-in server Base Station SETP_Router_V1.4
② 5 SETP_Label_V23 (Battery Powered)
Warehouse Picking System Demo Kit Working Principle
The SETP_Router_V1.4 serves as the central hub, hosting a built-in server program for seamless data transmission. Users send operational commands to the base station, which relays instructions to the SETP_Label_V11 units.
Warehouse Picking System Demo Kit with SETP_Label_V23(Battery Powered) Download
Warehouse Picking System Advantage
● Cutting-Edge Display Technology
The 2.9-inch E-Paper Display showcases exceptional efficiency with ultra-low power consumption, ensuring prolonged performance without screen flickering. This feature guarantees consistent operations, promoting swift response times ideal for efficient pick-to-light systems.
● Enhanced User Interface
Featuring a prominent, illuminated large-sized button, SETP_Label_V23 provides intuitive pick light support. This feature streamlines operations, making it effortless for users to identify and handle tasks within a pick-to-light system environment.
● Exceptional Battery Life and Connectivity
Benefit from an extended battery life, exceeding 3 years, ensuring continuous, reliable performance in pick to light systems.
● Operational Efficiency and Cost Reduction
The intuitive interface, complete with buttons and indicator lights, streamlines operations, optimizing speed and quality while reducing training time for operators within a pick to light system.
